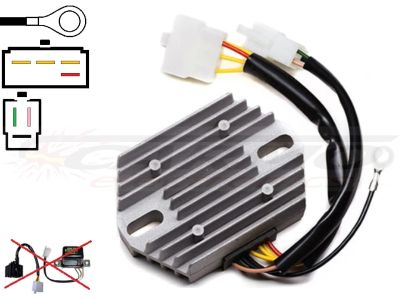

Modern Voltage Regulator / Rectifier - CARR771 CARR-rotor-2
Also suitable for lithium ion batteries
1 year warranty
Plug&Play
Among others suitable for:
Suzuki GT380 Sebring Voltage regulator rectifier 1972 1973 1974 1975 1976 1977
Suzuki RE500 Rotary (RE5) Voltage regulator rectifier 1975 1976
Suzuki GT550 Indy Voltage regulator rectifier 1972 1973 1974 1975 1976 1977
Suzuki GT750 Le Mans Voltage regulator rectifier 1972 1973 1974 1975 1976 1977
OEM numbers:
32500-31010 NIPPONDENSO 026000-2222
32800-31021 / 5610Y1
32500-37010
32800-37010
| ORIGINAL BIKE WIRE | CARR771 WIRE | FUNCTION |
| 3x Yellow | 3x Yellow | 3 Phases from stator |
| Red | Red | Battery (+) |
| Orange | Pink | 12V via Ignition switch |
| Green | Green | Battery (+) to the field coil |
| Black/white | Black | Field coil regulation on/off (-) |
| Black (ring) | Ground |
We manufacture a wide range of regulator rectifiers to fit new and older motorcycles.
New advanced design - most of our regulator rectifiers now feature highly advanced metal ceramic heat transfer and are built using the latest equipment, making them extremely rugged and reliable.
