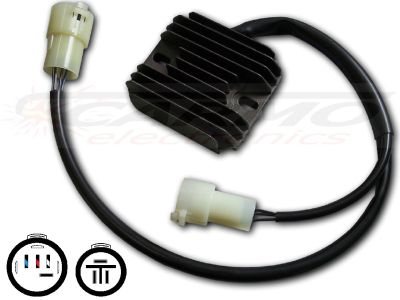

Modern MOSFET Voltage Regulator / Rectifier - CARR691Ka
Also suitable for lithium ion batteries
1 year warranty
Plug&Play
Among others suitable for:
Kawasaki ZX600 Ninja ZX-6R Voltage regulator rectifier 2000 2001 2002
Kawasaki ZX600 Ninja ZX-6RR Voltage regulator rectifier 2004 2005 2006 2007 2008
Kawasaki ZX-6RR Voltage regulator rectifier 2004
Kawasaki ZZ-R600 Voltage regulator rectifier 2005 2006 2007 2008
Kawasaki ZX636 Ninja Voltage regulator rectifier 2002 2003 2004
OEM numbers:
21066-1125
21066-0002
Numbers on the Voltage regulator rectifier:
12V REGULATOR RECTIFIER
SH650-12
We manufacture a wide range of regulator rectifiers to fit new and older motorcycles.
New advanced design - most of our regulator rectifiers now feature highly advanced metal ceramic heat transfer and are built using the latest equipment, making them extremely rugged and reliable.
| Color Original | Goes to | Color Carmo regulator |
| Bk (1) | Stator fase (1) | Yellow (1) |
| Bk (2) | Stator fase (2) | Yellow (2) |
| Bk (3) | Stator fase (3) | Yellow (3) |
| Bk | Load | - |
| Bk/Bl | 12V | Red |
| Bk/R | 12V switched | - |
| Bk/W | Ground | Green |
