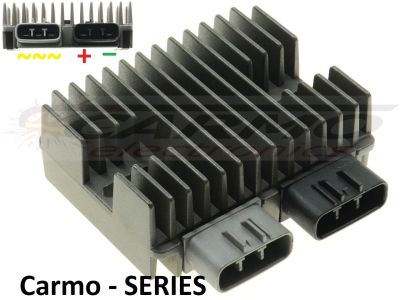

SERIE SERIES Voltage Regulator / Rectifier - CARR5925-SERIE (improved SH847)
Reduces alternator temperature by 25%, greatly increasing its reliability.
Also suitable for lithium ion batteries
1 year warranty
Plug&Play
Connectors also available:
Among others suitable for:
BMW C600 Sport ABS regulator rectifier 2011-
BMW C650 GT ABS regulator rectifier 2011-
BMW S1000RR regulator rectifier 2008-
CAN AM Can-Am 400 Outlander regulator rectifier
CAN AM 500 Outlander regulator rectifier
CAN AM 650 Outlander regulator rectifier
CAN AM 800 Commander regulator rectifier
CAN AM 800 Outlander regulator rectifier
CAN AM 990 Spyder RS Roadster regulator rectifier
CAN AM 1000 Commander regulator rectifier 2011-2014
CAN AM Maverick 1000 regulator rectifier 2014
CAN AM Outlander 1000 regulator rectifier 2012 2013
CAN AM Renegade 1000 regulator rectifier 2012-2013
CAN AM Renegade 500 regulator rectifier 2008-2014
CAN AM Renegade 800 regulator rectifier 2007-2014
Ducati Multistrada 1200 regulator rectifier 2010 2011 2012
Ducati Diavel 1200 regulator rectifier 2011 2012 2013-
Triumph Daytona 675 regulator rectifier 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016
Triumph Daytona 675R regulator rectifier 2011 2012 2013 2014 2015 2016 2017
Triumph Thunderbird regulator rectifier 2010 2011 2012 2013 2014 2015 2016
OEM numbers:
SERIE-SH947AA Shindengen
SERIE-SH775 Shindengen
| Specifications | |
| Operation temperature | ~ -20°C to ~ +60°C |
| Storage temperature | ~ -30°C to ~ +80°C |
| Regulated Voltage | 14,5V +/-0,5V |
| Maximum regulated current | 50A (case temperature <110°C) |
| Tests | |
| Therminal shock test | 200 cycles @-30 degrees Celcius and @+100°C |
| On-Off test | @50A On for 30 min / Off for 30 min - 1000 hrs, 5000RPM, case temp <100°C |
| Cold-Hot test | 20 cycles for 30 minutes, +80°C to 0°C and back, 5 minutes interval |
| Drop test | Drop from 1 meter height two times in X, Y and Z direction |
| Vibration test | 50 Hz in X, Y ad Z direction each direction for 3 hours |
Normally the regulator directs all the power from the generator that is not used to ground, this new regulator stops all the power that is not used.
That´s why the generator temperature will be less with this regulator with respect to the OEM regulator.
Another advantage is that the bike will have a little more power when the battery is full, because the stator will not ask energy from the flywheel in that case.
