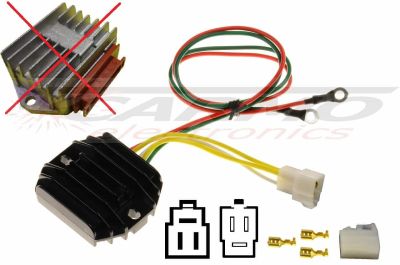

Improved MOSFET Voltage Regulator / Rectifier - CARR5115
More effective and gets less warm than the original regulator rectifier, therefore more reliable!
Also suitable for lithium ion batteries!Â
1 Year warranty
14,6V / 39A
Connector: CARC018-3
Among others suitable for:
Rotax 912 voltage regulator
Rotax 914 voltage regulator
Rotax 912UL voltage regulator
Rotax 914UL voltage regulator
OEM numbers:
343620
362001
Ducati Energia Charging System
Made in Italy / brevettato / DUCATI energia / 343142/ 12Vcd. 18A
12V power and ground leads directly to the battery for a direct current flow to prevent loss of power through an extra connector.
Connection 'R' is not needed when you use this imptoved MOSFET regulator rectifier.
The capacitor can be removed in the new situation.
Also connection 'C' is not needed because the regulator rectifier switches off automaticly when there is no input from the generator stator.
1 Year warranty.
In PDF (LINK)
