CARR351 - Yamaha XS650 MOSFET Voltage regulator rectifier

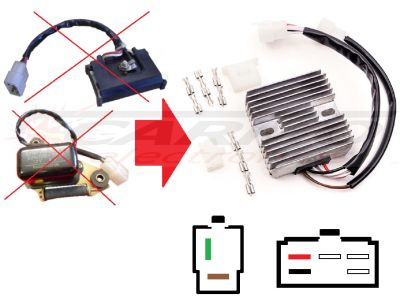

Modern MOSFET Voltage Regulator / Rectifier - CARR351 (CARR-rotor-1)
Also suitable for lithium ion batteries
1 year warranty
Plug&Play

Among others suitable for:
Yamaha YR5 Voltage regulator rectifier 1985 1986 1987 1988 1989 1990 1991
Yamaha XS360 Voltage regulator rectifier
Yamaha XS400 Voltage regulator rectifier
Yamaha TX650 Voltage regulator rectifier 1973 1974
Yamaha XS650 XS-1 Voltage regulator rectifier 1970
Yamaha XS-1 Voltage regulator rectifier 1970
Yamaha XS650 XS-1B Voltage regulator rectifier 1971
Yamaha XS-1B Voltage regulator rectifier 1971
Yamaha XS650 XS-2 Voltage regulator rectifier 1972
Yamaha XS-2 Voltage regulator rectifier 1972
Yamaha XS650 TX650 Voltage regulator rectifier 1973 1974
Yamaha TX650 Voltage regulator rectifier 1973 1974
Yamaha XS650 Voltage regulator rectifier 1975 1976 1977 1978 1979
Yamaha XS650S Heritage Voltage regulator rectifier 1978 1979
Yamaha XS750 Voltage regulator rectifier

OEM numbers:
NIPPONDENSO
026000-2790 / 1L9-81910-50 / 256-81970-11 / 447-81970-10
SB4-5 / ISO310 / ISO3I0
SB68-17 / 447-10

• 3 x yellow - Outer stator winding.
• 1 x red - + to battery.
• 1 x black - - to battery.
• 1 x brown - switched 12v via ignition switch.
• 1 x green - connection to inner field winding.

Hole - Hole space is 50-70mm
Housing 77x77x30 mm

We manufacture a wide range of regulator rectifiers to fit new and older motorcycles.
New advanced design - most of our regulator rectifiers now feature highly advanced metal ceramic heat transfer and are built using the latest equipment, making them extremely rugged and reliable.
