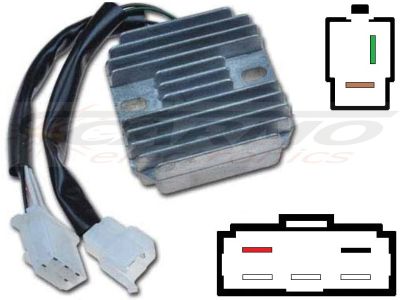

CARR331 - Kawasaki KZ750 MOSFET Voltage regulator rectifier

Modern MOSFET Voltage Regulator / Rectifier - CARR331
1 year warranty
Plug&Play

Among others suitable for:
Kawasaki Z750 Voltage regulator rectifier 1976 1977
Kawasaki ZK750 Voltage regulator rectifier 1976 1977
Kawasaki Z750B Voltage regulator rectifier
Kawasaki Z750LTD Belt Voltage regulator rectifier
Kawasaki Z750LTD Twin Voltage regulator rectifier
Kawasaki Z750 LTD Belt Voltage regulator rectifier
Kawasaki Z750 LTD Twin Voltage regulator rectifier

OEM numbers:
21061-021
21066-027
02185-0051
026000-2761 NIPPONDENSO

• 3 x yellow - Outer stator winding.
• 1 x red - + to battery.
• 1 x black - - to battery.
• 1 x brown - switched 12v via ignition switch.
• 1 x green - connection to inner field winding (low voltage --> switched to ground).

We manufacture a wide range of regulator rectifiers to fit new and older motorcycles.
New advanced design - most of our regulator rectifiers now feature highly advanced metal ceramic heat transfer and are built using the latest equipment, making them extremely rugged and reliable.
