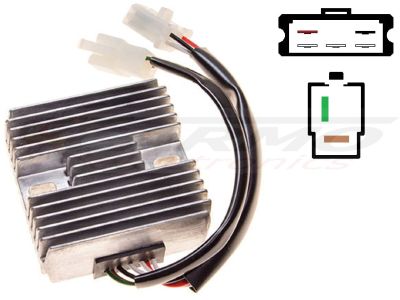

CARR311 - Yamaha XS Kawasaki KH500 MOSFET Voltage regulator rectifier

Modern MOSFET Voltage Regulator / Rectifier - CARR311
Also suitable for lithium ion batteries
1 year warranty
Plug&Play

Among others suitable for:
Kawasaki H1 Mach III voltage regulator rectifier 1969
Kawasaki H1-A voltage regulator 1970
Kawasaki H1-B voltage regulator rectifier 1971
Kawasaki H1-C voltage regulator rectifier 1972
Kawasaki H2 Mach IV voltage regulator rectifier 1972
Kawasaki KH500 H1 voltage regulator rectifier 1972
Kawasaki H1-D voltage regulator rectifier 1973
Kawasaki H2-A Mach IV voltage regulator rectifier 1973
Kawasaki H1-E voltage regulator rectifier 1974
Kawasaki H2-B Mach IV voltage regulator rectifier 1974
Kawasaki H1-F voltage regulator rectifier 1975
Kawasaki H1-F voltage regulator rectifier 1975
Kawasaki H2-C Mach IV voltage regulator rectifier 1975
Kawasaki KH5 voltage regulator rectifier 1969-1976
Kawasaki KH500-A8 voltage regulator rectifier 1976
Yamaha XS250 voltage regulator rectifier 1979
Yamaha XS250SE voltage regulator rectifier 1981
Yamaha RD350DX voltage regulator rectifier
Yamaha XS400 Maxim voltage regulator rectifier 1978 1979 1980 1981
Yamaha XS400S Heritage voltage regulator rectifier 1980 1981 1982
Yamaha XS500 voltage regulator rectifier 1976 1977 1978 1979
Yamaha XS750 voltage regulator rectifier 1978 1979
Yamaha XS750S voltage regulator rectifier 1978 1979
Yamaha XS850 voltage regulator rectifier 1980 1981
Yamaha XS850L Midnight Special voltage regulator rectifier 1980 1981
Yamaha XS850S Special voltage regulator rectifier 1980 1981
Yamaha XS1100 voltage regulator rectifier 1978 1979 1980 1981
Yamaha XS1100L Midnight Special voltage regulator rectifier 1980 1981
Yamaha XS1100R voltage regulator rectifier 1981
Yamaha XS1100S voltage regulator rectifier 1979 1980 1981

OEM numbers:
21066-1036
1T4-81960-92 / 1T4-81960-A0
1T4-81960-A2 / 1T4-81960-91
2L0-81910-50 / 1L9-81970-60
2G7-81910-50 / 371-81910-10
1A0-81970-60
SH233-12-1T4
SH233 Shindengen

• 3 x yellow - Outer stator winding.
• 1 x red - + to battery.
• 1 x black - - to battery.
• 1 x brown - switched 12v via ignition switch.
• 1 x green - connection to inner field winding.

We manufacture a wide range of regulator rectifiers to fit new and older motorcycles.
New advanced design - most of our regulator rectifiers now feature highly advanced metal ceramic heat transfer and are built using the latest equipment, making them extremely rugged and reliable.
