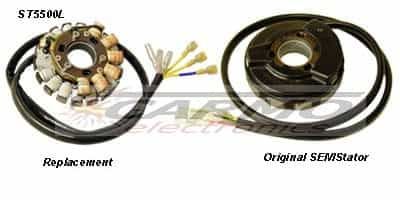

ST5500L - Lighting & Ignition Stator KTM

Usually suplied for 4-stroke KTM models, LC4 etc. Compare approximate resistance values below with originals:
- Red to Black source coil 1400 ohms +/-5%
- Green to Black pulse coil 25 ohms

New design gives a strong spark at very low RPM for easy starting and optimum reliability.
Standard output for lighting and battery charging (if fitted) is single phase with 2 yellow wires, this will suit most models.
This unit also has the capability of being configured as a 3-phase system by connecting our high power CARR171.
Fitting instructions included where the original stator system has a single yellow cable for lighting or an additional blue cable (earth).
1 Year warranty

Among others suitable for:
Husaberg (All Models) 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998
KTM 350 LC4 EGS 1993
KTM 350 LC4 EXC 1993 1994
KTM 350 LC4 SC Super Competition 1994 1995
KTM 400 LC4 Duke 1994 1995
KTM 400 LC4 EGS 1993 1994 1995 1996 1997
KTM 400 LC4 EXC 1993 1994 1995 1996
KTM 400 LC4 RXC 1994 1995 1996
KTM 400 LC4 SC Super Competition 1995 1996 1997 1998
KTM 400 LC4 SX 1998
KTM 400 LC4 SXC 1997 1998 1999 2000
KTM 500 LC4 EGS 1988 1989 1990 1991 1992
KTM 500 LC4 EXC 1988 1989
KTM 500 LC4 MX 1988 1989
KTM 540 LC4 SXC 1998 1999
KTM 600 LC4 EGS 1988 1989 1990 1991 1992 1993
KTM 600 LC4 EXC 1988 1989 1990 1991 1992 1993
KTM 600 LC4 MX 1987 1988 1989 1990 1991 1992
KTM 620 LC4 Competition 1997 1998 1999
KTM 620 LC4 Duke 1994 1995
KTM 620 LC4 EGS 1994 1995 1996
KTM 620 LC4 EXC 1994 1995
KTM 620 LC4 Rally 1994 1995 1996 1997
KTM 620 LC4 RXC 1994 1995 1996
KTM 620 LC4 SC Super Competition 1995 1996 1997 1998
KTM 620 LC4 Supermoto 1998 1999
KTM 620 LC4 SX 1994 1995 1996 1997 1998 1999
KTM 620 LC4 SXC 1997
KTM 640 LC4 Rally 1997
KTM 660 LC4 Rally 1997
Vertemati All

OEM numbers:
250014-01 / 58031002050

FITTING INSTRUCTIONS
